FHS5081TWQZE6
Anti-pollution Vehicle
Download brochure
Production introduction
Technical parameters
 Configurations

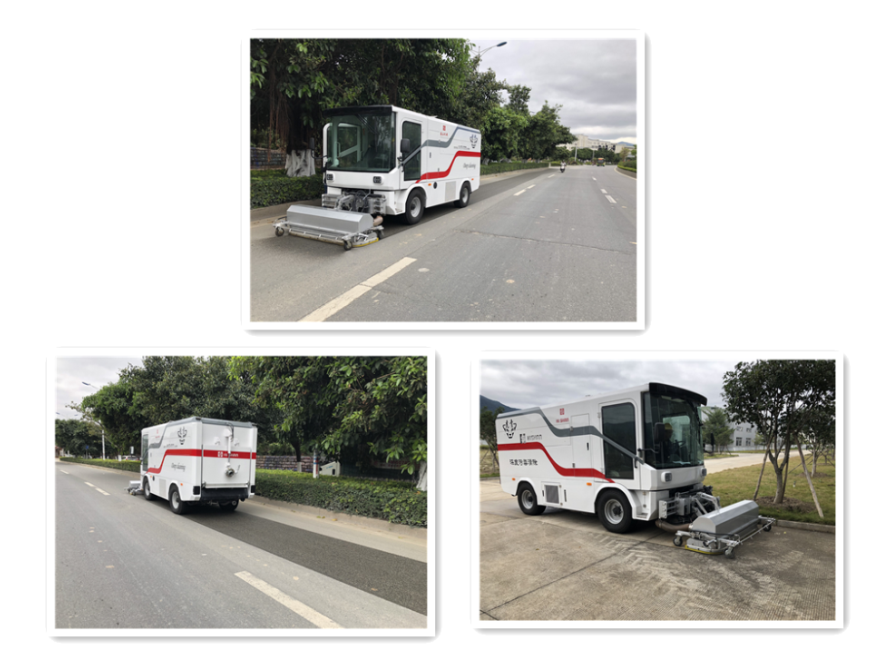

"Haishan Hurricane Brand "FHS5081TWQE6 road pollution removal vehicle is based on dozens of patents of Hasan, such as efficient turbine technology. It completely solves the problem that existing equipment cannot effectively remove road scale, hardening, oil and other pollutants, curbs road dust from the source, and realizes the true color of the road. It can be widely used for deep cleaning of roads, airports, docks, freight yards, power plants, steel mills, station squares, crosswalks and other important occasions The removal of toxic substances, such as cleaning, nuclear, biochemical and so on, is an indispensable and important equipment for sponge cities (restoration of permeability and drainage functions). In addition, due to its small and modular body, flexible operation, small turning radius and other characteristics, the product can be applied to some scenes where conventional medium and large cleaning vehicles cannot operate, such as streets in the old city, scenic spots, food streets, factory parks, auxiliary roads, back streets and other special sections.



Product advantages:

♦ Fully imported axle, high stability;

♦ Hydrostatic traveling drive and automatic cruise function reduce the working intensity of operators;

♦ Single engine design, no secondary engine, outstanding environmental performance;

♦ Front cleaning device, visual operation, convenient and fast operation;

♦ Small car body, flexible and flexible, small turning radius, can solve special sections such as scenic spots, food streets, streets in the old city, auxiliary roads, back streets and alleys;

♦ Ultra clean vacuum recovery can solve the problem of sewage splashing, garbage throwing and dust rolling caused by traditional equipment operation;

♦After the operation, the removal rate of dust and sediment on the road surface is more than 99%, and the road surface is basically kept dry without any secondary pollution. One operation can meet the standard of "conquering the net" and realize the high requirement of "sitting on the ground and seeing the true color of the road";

♦ With permeable/drainage road function recovery function, the operation effect of the product is far superior to that of similar foreign products;

♦ With powerful functions, a single equipment can replace the complete set of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy;

♦ The frequency of operation is significantly reduced compared with the traditional combined operation mode, and the duration of single deep pollution removal effect can reach 5-15 days.



1

Parameter item Parameter value
Overall dimensions (length × wide × High)(mm) 6200×1730×2600
Maximum mass(kg) 8800
Volume of clean water tank(m3 ≥2
Sewage tank volume(m3 ≥3
Working pressure of high pressure jet(MPa) 30
Operating speed(km/h) 0-5
Width of pollution removal operation (customizable)(mm) 1600(不含水扫把)
Left and right lateral displacement of high-pressure jet cleaning device(mm) ±300
Chassis specifications 4×2
Engine power(KW) 109/115
emission standard National 5/6
