FHS5080TWQDBEV
Anti-pollution Vehicle
Download brochure
Production introduction
Technical parameters
 Configurations

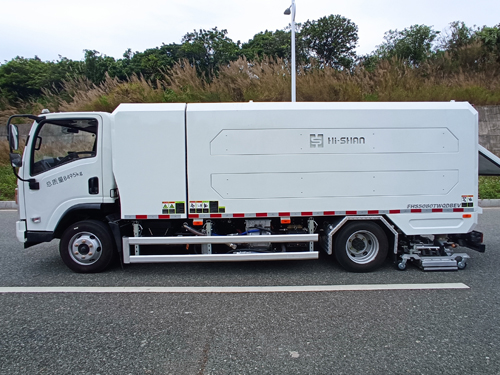

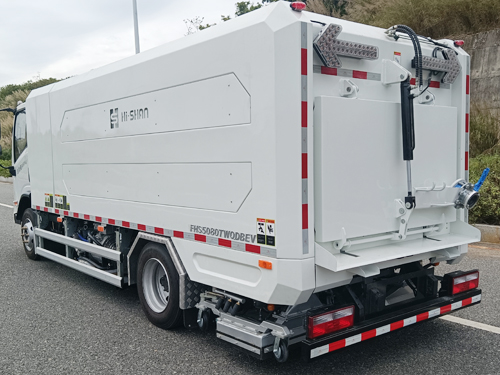

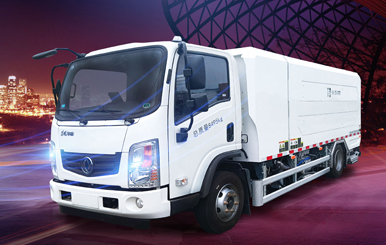

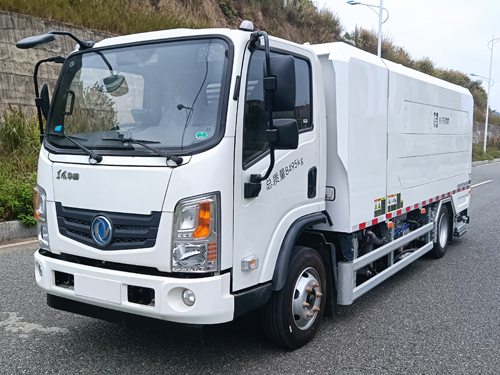

The "Haishan Hurricane" FHS5080TWQDBEV(Pure electric) road pollution removal vehicle adopts a pure electric drive mode with zero emissions. Based on the high efficiency composite turbine and other technologies with dozens of patents of Hasan, the existing equipment can completely solve the problem that the existing equipment can not effectively remove pollutants such as road scale, hardening and oil contamination, and curb road dust from the source. It can be widely used in the deep cleaning of roads, airports, docks, freight yards, power plants, steel mills, mines, squares and other important occasions, as well as the removal of nuclear, biochemical and other toxic substances, It is an indispensable important equipment for sponge cities (functional recovery of permeable and drainage roads), and also an efficient tool for disaster rescue such as floods.



Product advantages:

♦ It matches the large power and high energy density lithium iron phosphate battery of Ningde Times, which is green, environmentally friendly, has a long service life, good environmental adaptability, strong safety protection, and more stable discharge;

♦ The whole vehicle has a long range and good mute effect, which can meet various complex urban working conditions (traffic jam, air conditioning in summer, etc.);

♦ Short charging time, low power consumption, full charge only takes 2 hours;

♦ Strong adaptability, high reliability, and mature and reliable power assemblies;

♦ Ultra clean vacuum recovery, with outstanding effect on road cleaning, can completely and thoroughly remove road scale, sludge, oil dirt, heavy metals, and no sewage residue and leakage;

♦ With permeability/drainage performance and road function recovery function, the operation effect of the product is far superior to that of similar foreign products;

♦ With powerful functions, a single equipment can replace the complete set of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy;

♦The operation frequency is significantly reduced compared with the traditional combined operation mode, and the effect of single deep pollution removal lasts for 5-15 days;

♦ One machine with multiple functions: it has the working modes of deep cleaning, emergency quick cleaning and curb cleaning, and can optionally be equipped with a hand-held cleaner for deep cleaning of sidewalks;

♦ Intelligent and humanized operation: 360 degree video monitoring and intelligent anti-collision system; PM2.5, PM10 automatic real-time pollution detection system;

♦It can meet the requirements of deep cleaning of roads in factories such as steel and coal mines and industrial sites such as ports and docks, and curb road dust from the source.


Parameter item Parameter value
Overall dimensions (length × wide × High)(mm) 6960×2100×2460
Maximum mass(kg) 8495
Power mode Pure electric
Volume of clean water tank(m3 2.8
Sewage tank volume(m3 2.8
Working pressure of high pressure jet(MPa) 30
Operating speed(km/h) 0-10
Standard working width(mm) 2100
Left and right lateral movement of high-pressure jet cleaning device(mm) ±200
Chassis brand Dongfeng Huashen
Chassis specifications 4×2
Battery capacity(kWh) 157
Fuel type Lithium iron phosphate battery (Ningde Times)
FHS5080TWQDBEV
