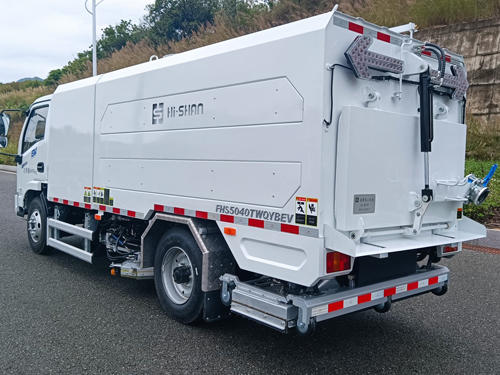

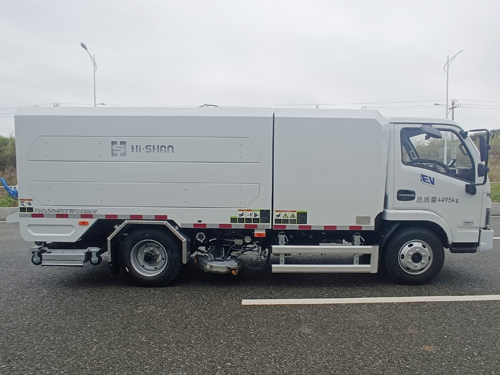

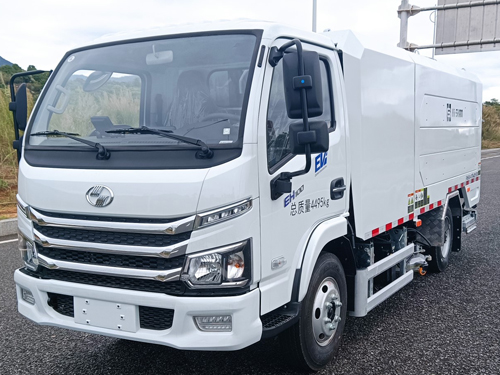

FHS5040TWQYBEV
Anti-pollution Vehicle
Download brochure
Production introduction
Technical parameters
 Configurations

The "Haishan Hurricane" FHS5040TWQYBEV(Pure electric) road pollution removal vehicle adopts a pure electric drive mode with zero emissions. Based on the high efficiency composite turbine and other technologies with dozens of patents of Hasan, the existing equipment can completely solve the problem that the existing equipment can not effectively remove pollutants such as road scale, hardening and oil contamination, and curb road dust from the source. It can be widely used in the deep cleaning of roads, airports, docks, freight yards, power plants, steel mills, mines, squares and other important occasions, as well as the removal of nuclear, biochemical and other toxic substances, It is an indispensable important equipment for sponge cities (functional recovery of permeable and drainage roads), and also an efficient tool for disaster rescue such as floods.



Product advantages:

♦ The vehicle can be driven with certificate C, meeting the working conditions in narrow areas such as back streets, scenic spots and factories;

♦ Innovative middle left and right cleaning tray+water broom structure, which can clean the marking and curb separately;

♦ The top is equipped with a rotatable boom, which can be washed over barriers such as roadside guardrails and parked vehicles;

♦ The whole vehicle adopts mechanical low-speed cruise technology, which can achieve at least 1km/h operation, with more efficient transmission and energy saving;

♦ It matches the large power and high energy density lithium iron phosphate battery of Ningde Times, which is green, environmentally friendly, has a long service life, good environmental adaptability, strong safety protection, and more stable discharge;

♦ The whole vehicle has a long range and good mute effect, which can meet various complex urban working conditions (traffic jam, air conditioning in summer, etc.);

♦ Short charging time, low power consumption, full charge only takes 70 minutes;

♦ Strong adaptability, high reliability, and mature and reliable power assemblies;

♦ Ultra clean vacuum recovery, with outstanding effect on road cleaning, can completely and thoroughly remove road scale, sludge, oil dirt, heavy metals, and no sewage residue and leakage;

♦ With permeability/drainage performance and road function recovery function, the operation effect of the product is far superior to that of similar foreign products;

♦ With powerful functions, a single equipment can replace complete sets of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy;

♦ The operation frequency is significantly reduced compared with the traditional combined operation mode, and the effect of single deep pollution removal lasts for 5-15 days;

♦ One machine with multiple functions: deep cleaning, emergency quick cleaning, zebra crossing cleaning, curb cleaning, boom obstacle crossing cleaning, etc;

♦ Intelligent and humanized operation: 360 degree video monitoring and intelligent anti-collision system。


Parameter item Parameter value
Overall dimensions (length × wide × High)(mm) 5995×1800×2360
Maximum mass(kg) 4495
Power mode Pure electric
Volume of clean water tank(m3 1.5
Sewage tank volume(m3 1.5
Working pressure of high pressure jet(MPa) 30
Operating speed(km/h) 0-10
Standard working width(mm) 1800
Operation width of central cleaning tray(mm) 435
Width of cleaning tray opening operation(mm) 2235
Chassis brand 上汽跃进
Chassis specifications 4×2
Battery capacity(kWh) 98
Fuel type Lithium iron phosphate battery (Ningde Times)
FHS5040TWQYBEV
